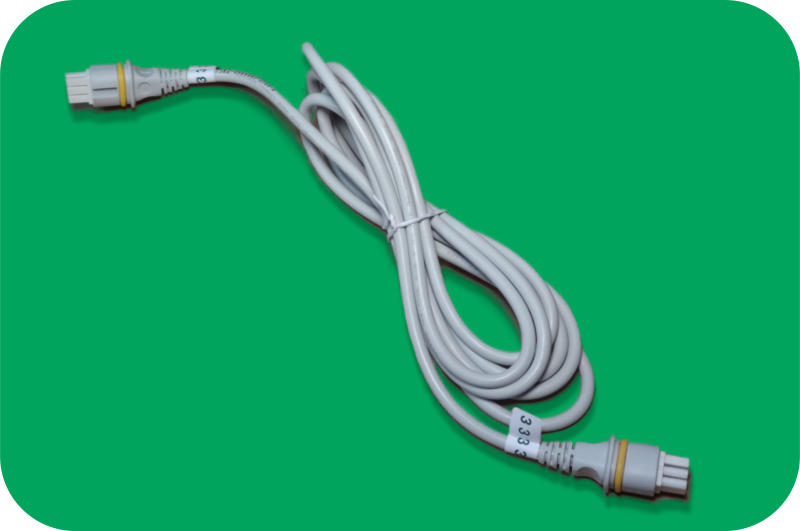

Actuator Cable
This
is
one
of
three
Actuator
Cables
in
the
wiring
harness
that
connect
the
Tilt,
Back
and
Leg
Actuators
to
the
CB16
Control
Box.
The
Actuator
Cables
are
2500
mm
(98
inches)
in
length
with
mini-fit
plugs
at
each
end
allowing
for
quick
and easy replacement of any Actuator.

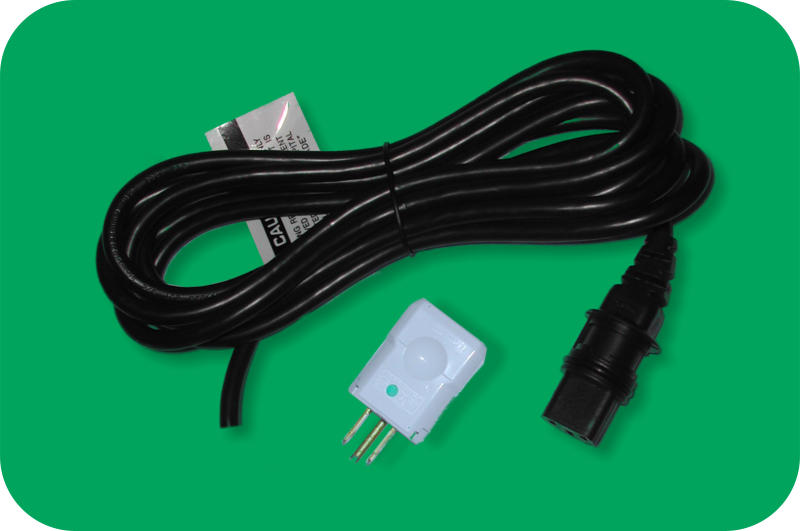

Power Cord & Plug
The
black
Power
Cord
is
hospital
grade,
18
AWG,
3
conductor,
SJT
with
a
hospital
grade
plug.
Approximate
length
of
3200
mm
(126
inches).
This
is
a
proprietary
power
cord that locks into the CB16 and seals with o-rings.
$2695.00 + shipping (without foot control)
* Foot control currently not available *
Retrofit Kit EF1200
Fits Midmark Power Tables:
Model 111 (after serial numbers K2000)
All models 119, 311, 319
$25.00 + shipping
$70.00 + shipping
•
Power Cord and Hospital Grade Plug
•
Template to cut the upper rear panel sheet metal
•
Edge trim – 12” for the upper rear panel cutout
•
Template to cut the H-Brace (column brace) if necessary
•
Assortment of wire ties, screws, washers, and spacers
•
ElectraFit Name Plate Label
•
Retrofit installation guide ** On Line **
•
Operators manual
•
CB16 Control Box
•
4 sets of heavy duty Linak actuators
•
Set of clevis pins, cotter pins, custom clevises
•
Digital Junction Box (DJB)
•
Programmable Hand Control
•
Manual Foot Control
•
All necessary cable locks and connectors
•
Wiring Harness

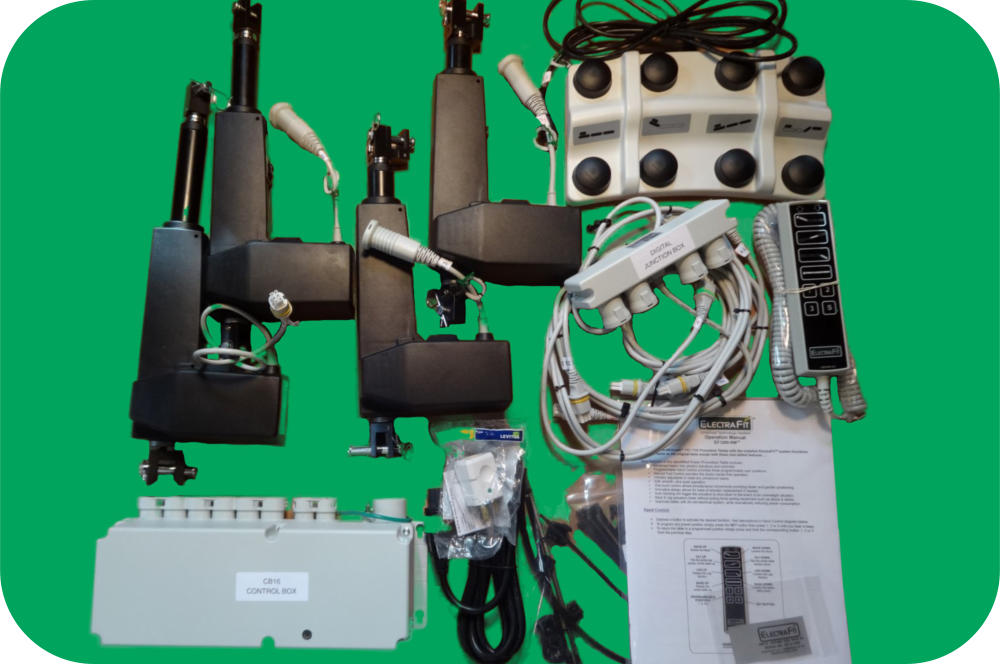

Kit includes the following:

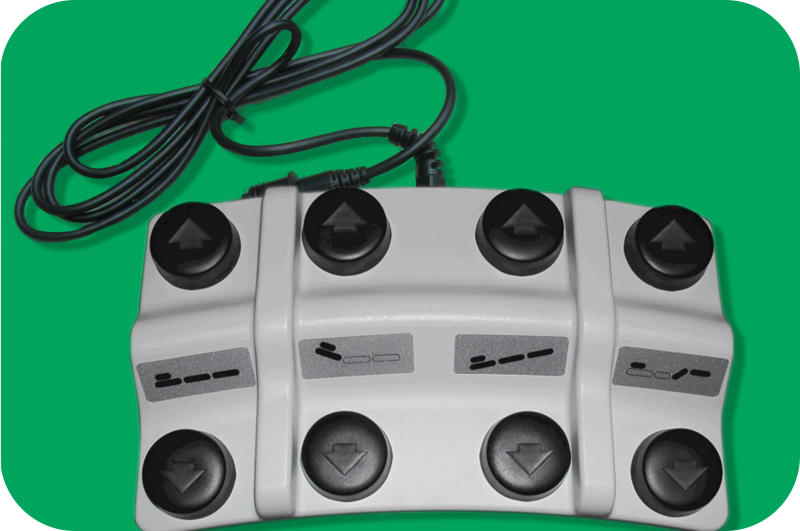

Foot Control * Foot control currently not available *
The
8
position
manual
Foot
Control
provides
up
and
down
precision
movement
to
the
Base,
Tilt,
Back
and
Leg
actuators.
The
lightweight
ergonomic
design
places
the
four
control
pads
operating
upward
movement
at
a
higher
level
than
those
operating
the
lower
movements,
providing
a
comfortable
Foot
Control
for
hands
free
operation.
The
cable
length
is
2500
mm
(98
inches)
providing
optimal
placement
options
around
the
table.
Made
from
gray,
high
strength
plastic
housing
and
black
control
pads
with
a
protection
rating of IPX7. Made in England.

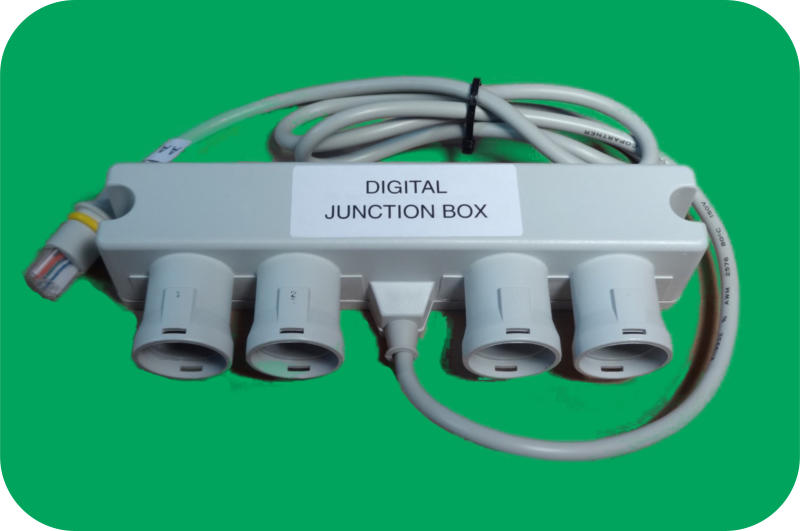

Digital Junction Box (DJB)
The
Digital
Junction
Box
by
LINAK
allows
multiple
controls
to
be
connected
to
the
Control
Box
with
a
cable
length
of
1000
mm
(39
inches).
Made
from
gray,
high
strength
plastic
housing with a protection rating of IPX6.
$70.00 + shipping

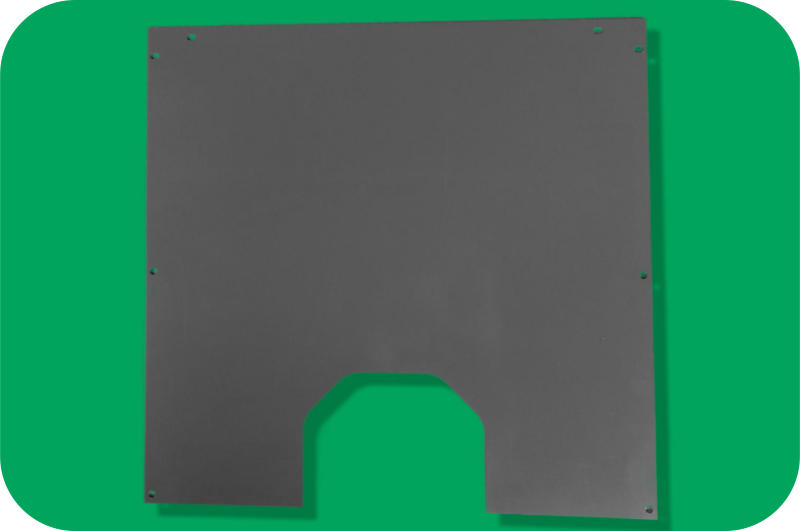

Upper Rear Panel
The
Upper
Rear
Panel
has
an
opening
providing
clearance
for
the
Base
Actuator
motor
and
can
replace
the
original
Rear
Panel.
The
original
Rear
Panel
can
be
modified
to
work
by
cutting
the
opening
with
metal
cutting
equipment
such
as
a
saws-all
or
jig
saw
and
drill
in
the
shop,
utilizing
the
paper
template
provided
with
the
kit.
Made
from
16
gage
sheet
metal,
powder
coated
medium gray, approximate weight 4 lbs.

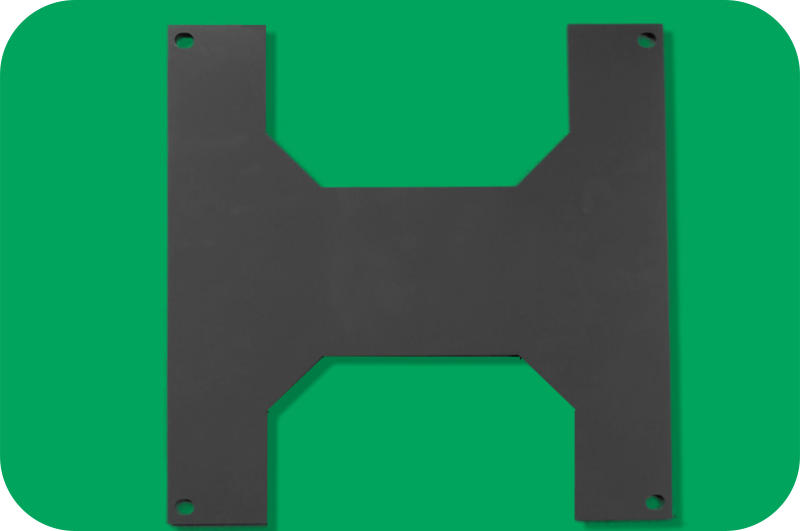

H-Brace
The
H-Brace
has
an
opening
providing
clearance
for
the
Base
Actuator
motor
and
can
replace
the
original
H
Brace
that
does
not
have
a
large
opening.
Some
exam
tables
have
H
Braces
with
a
small
slot
at
the
top
and
bottom.
If
the
original
H
Brace
has
a
small
slot
opening,
it
can
be
modified
to
work
by
cutting
the
opening
with
metal
cutting
equipment
such
as
a
saws-all
or
jig
saw
and
drill
in
the
shop,
utilizing
the
paper
template
provided
with
the
kit.
Made
from
10
gage
sheet
metal,
powder
coated
medium gray, approximate weight 5 lbs.

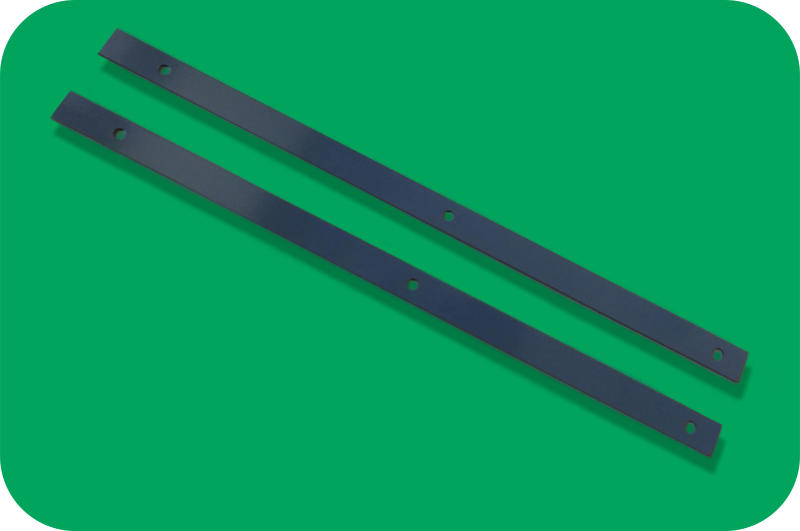

Motor Cover Straps (Set of 2)
The
Motor
Cover
Straps
provide
a
rigid
method
of
fastening
the
plastic
motor
cover
to
the
side
panels.
Some
older
tables
may
have
minor
damage
on
the
motor
cover
at
the
screw
holes.
The
Motor
Cover
Straps
not
only
provide
reinforcement
but
also
cover
damaged
areas
on
the
plastic
motor
cover.
Two
Motor
Cover
Straps
per
order.
Made
from
16
gage
sheet
metal,
powder
coated
medium gray.

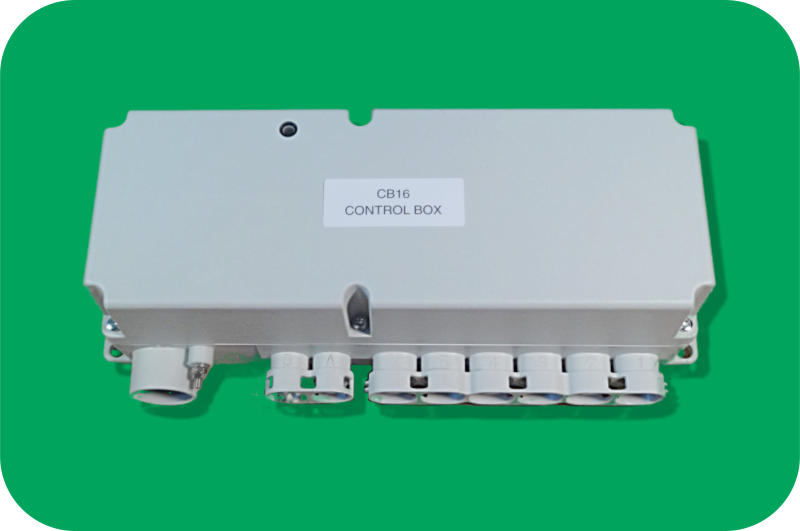

CB16 Control Box
The
CB16
Control
Box
(CB16)
by
LINAK
is
a
proprietary
software
based
system
for
customizing
actuator
movement
with
the
option
for
added
accessories.
This
CB16
protects
the
actuators
with
electronic
overload
protection.
Made
from
gray,
high
strength
plastic
housing
with
a
protection
rating
of
IPX4.
$90.00 + shipping
$40.00 + shipping
$630.00 + shipping
$280.00 + shipping
$160.00 + shipping

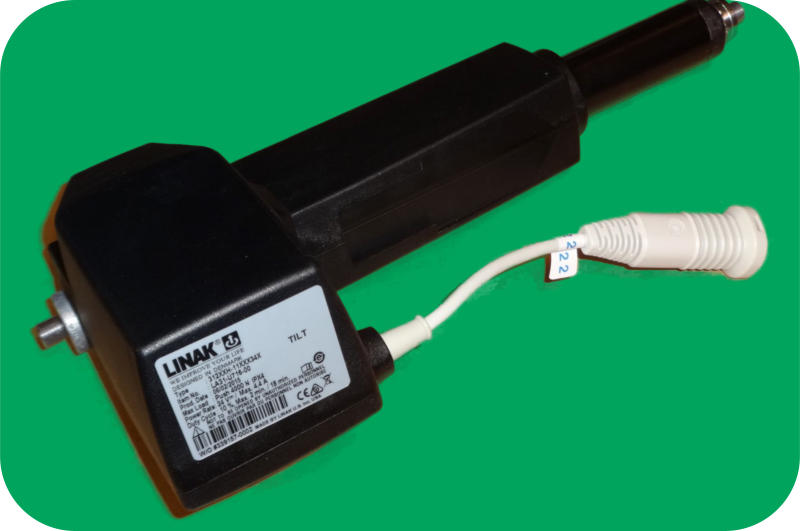

Tilt Actuator
Powerful
proprietary
actuator
design
by
LINAK,
a
world
leader
in
linear
actuators.
Black,
high
strength
plastic
housing
with
a
protection
rating
of
IPX5.
Noise
level
only
48dB.
Plug
in
place
design
with
sealing
o-rings.
Made
in
the USA.

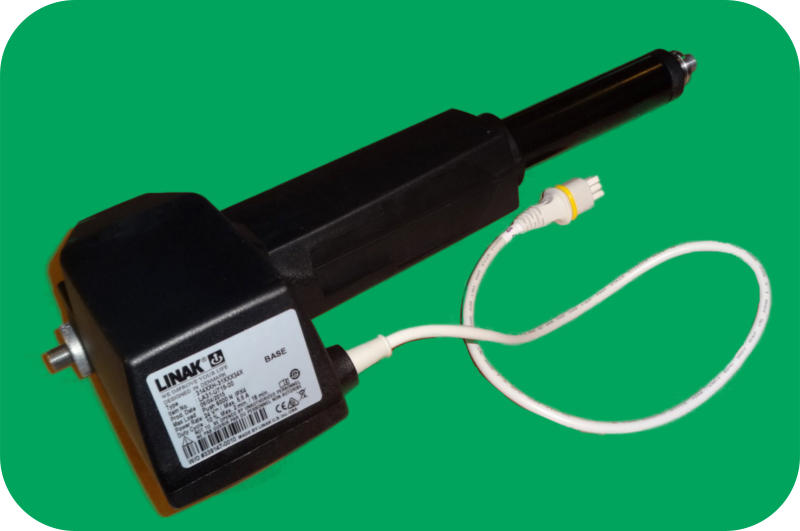

Base Actuator
Powerful
proprietary
actuator
design
by
LINAK,
a
world
leader
in
linear
actuators.
Black,
high
strength
plastic
housing
with
a
protection
rating
of
IPX5.
Noise
level
only
48dB.
Plug
in
place
design
with
sealing
o-rings.
Made
in
the USA.
$435.00 + shipping
$425.00 + shipping

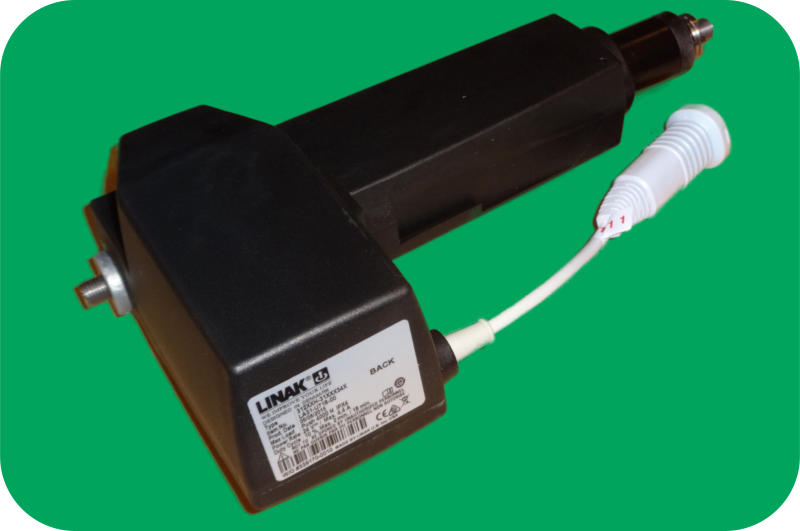

Back Actuator
Powerful
proprietary
actuator
design
by
LINAK,
a
world
leader
in
linear
actuators.
Black,
high
strength
plastic
housing
with
a
protection
rating
of
IPX5.
Noise
level
only
48dB.
Plug
in
place
design
with
sealing
o-rings.
Made
in
the USA.
$415+ shipping

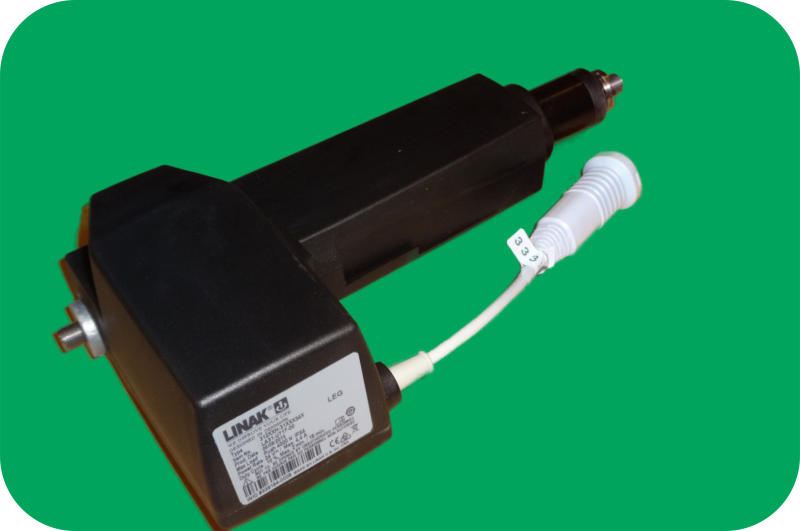

Leg Actuator
Powerful
proprietary
actuator
design
by
LINAK,
a
world
leader
in
linear
actuators.
Black,
high
strength
plastic
housing
with
a
protection
rating
of
IPX5.
Noise
level
only
48dB.
Plug
in
place
design
with
sealing
o-rings.
Made
in
the USA.
$415 + shipping
Keep in mind that most of our actuators can be
replaced in only 15 minutes.
2-year warranty on all components

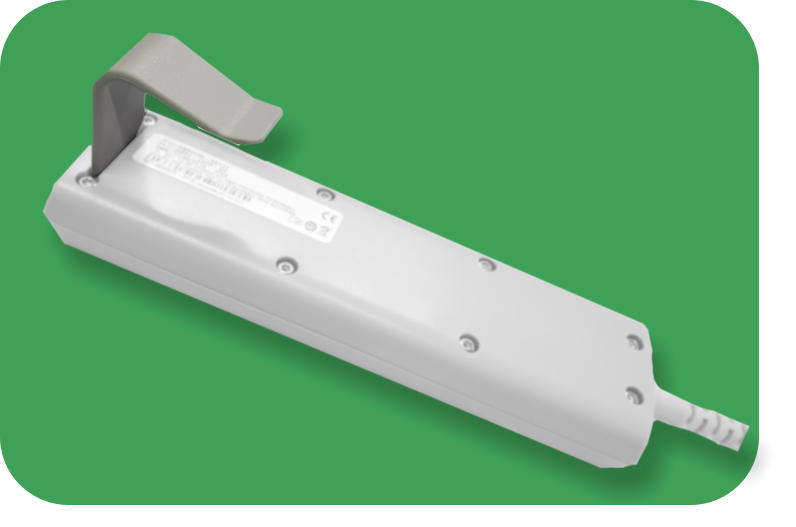

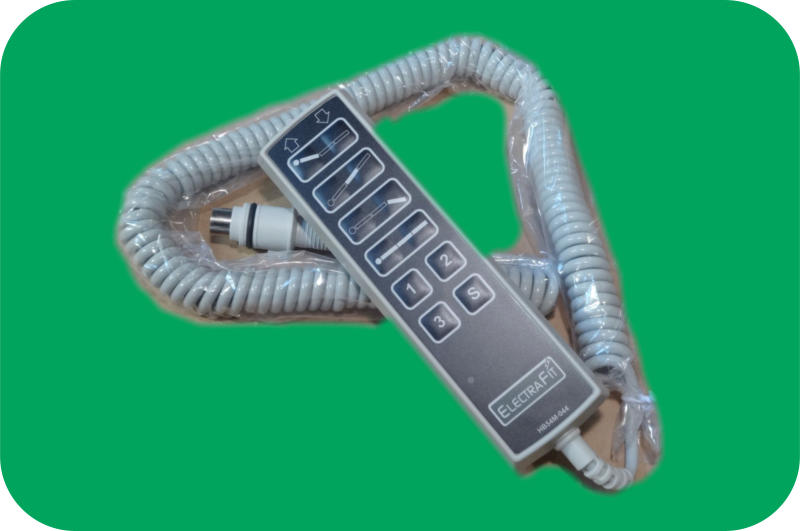

Hand Control
The
Hand
Control
is
comprised
of
12
easy
touch
buttons
providing
up
and
down
movement
for
the
Base,
Tilt,
Back,
and
Leg
actuators,
including
3
memory
positions
and
a
memory
set
button.
This
light
weight
Hand
Control
has
a
solid
built
in
hook
for
hanging
when
not
in
use
and
a
gray
coiled cable for ease of safe movement around the table.
Made
from
gray,
high
strength
plastic
housing
with
a
protection rating of IPX5.
$165.00 + shipping
Hook for Hand Control (Gray)
A
replacement
Hook
for
hanging
the
hand
control.
A
T10
Torx
screw driver will be required to remove the 2 screws.
$15.00 + shipping
